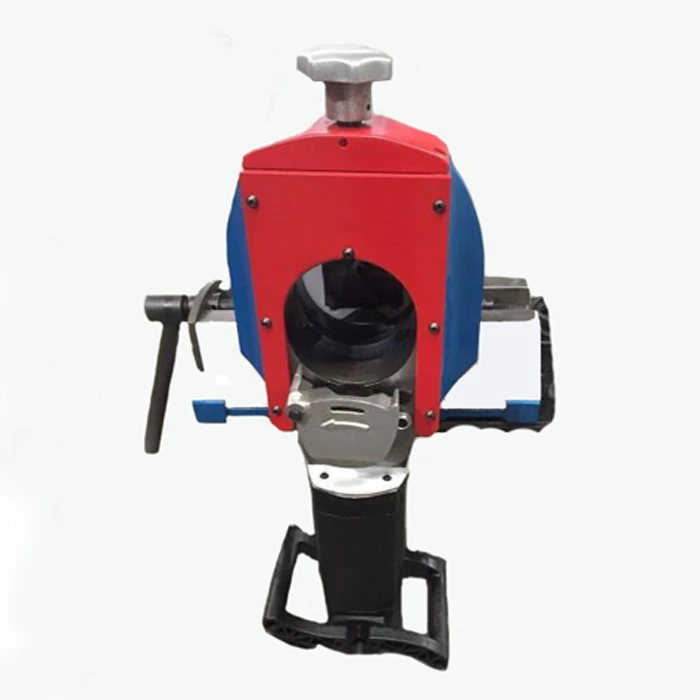

H120 Orbital Pipe Cutting Machine

The orbital pipe cutter (also known as planetary pipe cutter) is driven by a motor, which ensures strong power. It is easy to operate and saves space. During operation, the pipe to be cut is fixed on the "self-centering" clamping device, so that the pipe will not be deformed. Cutting manually or under the drive of the automatic device, the orbital pipe cutter rotates around the pipe, completing one full revolution to cleanly sever the pipe. After cutting, the end face is vertical and burr-free, ensuring the pipe remains undeformed-a fundamental guarantee for high-quality pipeline welding. At the same time, it can meet beveling requirements. As a mechanical cold-cutting solution, it will not damage the pipe material. It is the preferred choice for direct welding after pipe cutting in semiconductor, electronic equipment, beer, pharmaceutical, biotechnology, beverage, dairy, pressure vessel, oil, gas, chemical, aviation and aerospace industries, shipbuilding, electric construction, boiler, water treatment, and other industries.



Planetary pipe cutters are specialised equipment that perform cutting by rotating the cutting head around the pipe. With their unique cold-cutting technology and highly efficient, precision characteristics, they find extensive application across numerous industrial sectors.

H Series Features：

1. Enhanced safety through rotating blade cutting while the pipe remains stationary.

2. Features restart protection, temperature rise protection, and overload/overvoltage protection.

3. Automatic pipe centering followed by cutting (ports remain clean, burr-free, and distortion-free).

4. Cutting accuracy within 0.2mm.

1: High safety, pipe static condition using the tool rotation to complete the cutting, beveling

2: Pipe diameter adjustment quickly, can be completed in a few seconds

3: Cutting the pipe automatically centered, beveling is very uniform

4: Cold process, will not damage the pipe material; fast cutting, high efficiency

5: No deformation of the cut, the end of the surface without burrs, and always keep clean, high-quality welding requirements of occasions suitable for

6: Quick replacement of the blade

7: Rugged design with powerful drive unit. Unique automated planetary cutting process

8: Optimized preparation for automatic welding, preferred choice for welding directly after pipe cutting

9: Cutting speed can be adjusted according to the material and wall thickness of the pipe to be cut, e.g. low speed for stainless steel pipes

10: Automatic knife travelling possible

Types of pipe materials for cutting: Plastic pipes (PE/PP/PVDE/PVC), copper pipes, cast iron pipes, ordinary steel pipes, ferrous metal pipes, galvanized pipes, aluminum pipes, high-quality stainless steel pipes.

Cutting Steps

1.Mount the pipe to be cut onto the machine and clamp it in place using the clamping fixture according to the required length.

2.Select the appropriate blade speed, start the motor, and turn the motor handle. When the handle has rotated approximately 30 degrees, adjust the cutting depth by turning the handle until the blade penetrates the pipe wall by about 1-2mm.

3.Add lubricating oil

Using cutting oil helps dissipate heat and facilitates chip evacuation from the blade's serrations, thereby extending blade life and improving surface finish quality.

For pipes used in food and beverage industries, we recommend Venit's non-toxic cutting oil and blades.

4.Cutting longer pipes

Note: When the pipe extends beyond 1 meter, it is recommended to use Venit's dedicated support brackets.

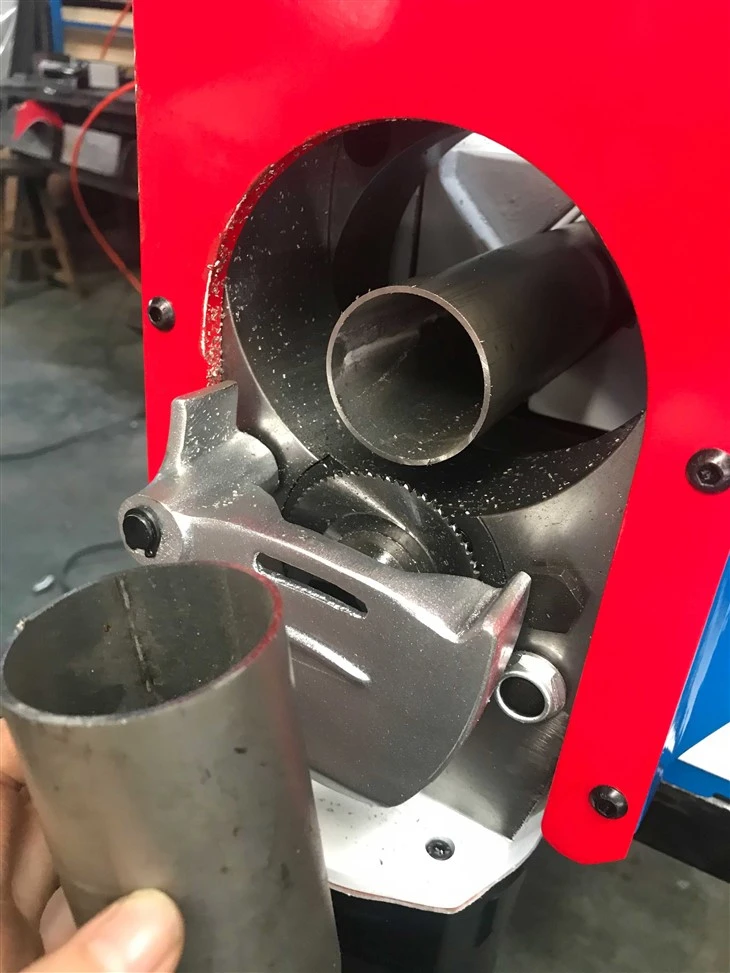

5. Cutting

We are experts in the slope.

The pipe cutter employs manual rotation of the machine through 360 degrees to sever pipes, utilising a circular serrated blade driven by a 1600-watt motor. The pipe is severed after completing a full 360-degree rotation. This robust and powerful motor features a 6-speed selection.
