Product Description
The desktop pipe cutting and beveling machine (also known as a pipe prepping machine) is a stationary equipment specializing in metal pipe cutting and beveling processing, widely used in petroleum, chemical, electric power, shipbuilding, and other industries. This pipe prepping machine ensures high precision and efficiency, making it ideal for welding preparation and pipe fabrication.
our Beveling Machine

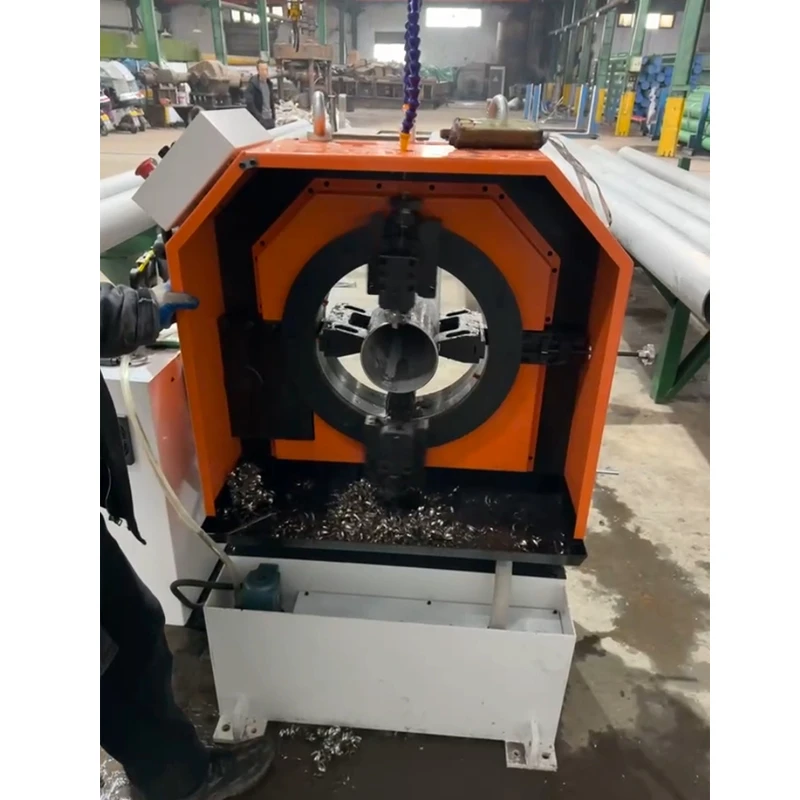

TCM-325 Desktop Pipe Cutting and Beveling Machine
Structura1
Optional Device Configurations
-Pipe conveying roller table (electric and manual options, determine input end length? Output end length?)
-Automatic feeding system
-Automatic cutting system
Structura2
-Finished material rack and raw material rack
-Pipe length fixing system (optional manual length fixing system or CNC automatic length fixing system)
Parameters:
|
Model |
TCM-325 |
TCM-426 |
TCM-630 |
|
Applicable pipe diameter (mm,O.D) |
48-325 |
108-426 |
325-630 |
|
Blade speed (rpm) |
Stepless variable frequency speed regulation |
Stepless variable frequency speed regulation |
Stepless variable frequency speed regulation |
|
Main motorpower (KW) |
4.0/5.5 |
5.5/7.5 |
7.5 |
|
Clamping system |
4-jaw self centering electric clamping |
6-jaw self centering electric clamping |
|
|
Processing wall-thickness (mm) |
Stainless steel/high alloy steel 3-20, carbon steel 3-30 |
||
|
Feed speed |
Ordinary type: carbon steel ≤ 3mm/min, stainless steel, alloy steel ≤ 2mm/min |
||
|
Groove type |
V/I/U/double V |
||
|
Processing material |
Carbon steel, alloy steel, stainless steel, low-temperature steel, heat-resistant steel, etc |
||
|
Processing efficiency |
Ordinary type: processing stainless steel pipes with a wall thickness of 0.5mm per 15s |
||
|
Input power supply |
AC 380V 50Hz |
||
Features
-Stable performance: Delivers excellent cutting and beveling quality, meeting the precision requirements of different projects.
-Good beveling quality: Processes various bevel shapes (V-type, U-type, double V-type, etc.) with a smooth surface finish.
-Easy operation: Electric clamping saves time and labor, requiring no complex skills.
-Strong applicability: Adapts to pipes of different materials and diameters. By replacing tools and adjusting parameters, this pipe prepping machine meets diverse cutting and beveling needs.
-High production efficiency: Compared to manual methods, it significantly improves workflow, reducing labor and time costs.
This desktop pipe cutting and beveling machine is a reliable pipe prepping machine for industrial pipe processing, ensuring precision, speed, and consistency.
We are specialists in beveling machines.
The company's top ten series and dozens of products have been exported tomore than 60 countries and regions such as Europe, America, the Middle East,and Southeast Asia
-
5K +Completed Projects5k complete work
-
60 +Our ExpertProfessional technical teamrr
Our History
After years of development, the company has won the domestic and international markets withexcellent quality and perfect service, and is highly praised and trusted by users, and have passedthe lS0-9001 international quality system certification.
The company always adheres to market demand as the guide. customer satisfaction as the goalinnovation as the driving force, honesly and irustworthiness as the principle, and the pursuit ofquality and low price! The company has a group of experienced senior management, sales, anddevelopment talents. laying a solid foundation for the development and growth of the enterpriseAdvanced management concepts and a comprehensive service system have injected newvitalityinto the enterprise!
active members
years experience
events & challenges
expert instructors
More About Wellnit
Our Factory
Zhejiang Wellnit Machinery Manufacturing Co., Ltd. located in Shuige industrial Zone , Liandu District,lishui City. The company specializes in the production of electric, pneumatic. hydraulic, CNC, andexplosion-proof groove cutting machinery.
Production Equipment
We have hundreds of production equipment including machining centers, CNC lathes, gear shapingmachines, wire cutting machines, surface grinders, cylindrical grinders, etc.
why choose us
After years of development, the company has won the domestic and international markets with excellent quality and perfect service
why choose our products
Zhejiang Wellnit Machinery Manufacturing Co., Ltd. located in Shuige industrial Zone , Liandu District, lishui City. The company specializes in the production of electric, pneumatic. hydraulic, CNC, and explosion-proof groove cutting machinery.
Equipped with high - precision CNC machine tools, processing centers, advanced equipment, technologies and a strict quality management system, the company has built a leading R & D team. By fully applying new technologies, processes and materials, it ensures the stability and reliability of products.
Storage Center
Specializing in the production of electric, pneumatic, hydraulic, CNC and explosion - proof groove cutting machines, the company has won domestic and international markets with excellent quality and perfect services after years of development, gaining unanimous praise and trust from users.
large enterprise scale
Efficient and precise processing and testing equipment.
Standardized Production
Passed ISO9001 certification and obtained relevant patent certificates.
High-Quality Customized Services
No intermediate links, providing one-stop service from design, processing, mold trial to mass production.
Qualification and honors acquired by the enterprises, over the post achievements of the enterprise must,but also on the enterprises to create briliant tomorrows inspiration and encouragement!Toward a new sfep, Team is hard work, never stop the belief!
FAQ
01.What is a desktop pipe cutting and beveling machine used for?
02.What's the main difference between a desktop and a laptop?
03.What types of clamping systems are there for desktop pipeline beveling machines?
Manual clamping: Achieved by human power through mechanisms like handwheels driving screws and other transmission components. It's low cost, but less efficient, and the clamping force varies from person to person.
Electric clamping: Driven by a motor to operate the clamping mechanism. This is the mainstream setup for desktop machines nowadays, offering efficient operation and stable, controllable clamping force.
04.Is a tabletop pipe beveling machine suitable for large-scale processing?
05.What skills are required for operators of a desktop pipe beveling machine?
06.How can I request a quote for a desktop pipe cutting and beveling machine?
