Pneumatic Flange Facer by compressed air, outside Diameter Flange Facer is suitable for applications where electrical sparks need to be avoided. It can machine flange faces, sealing surfaces and related grooves, including RF and RTJ-type surfaces, depending on the tooling configuration. Its portable design allows damaged or worn flanges to be repaired on site without removing the entire pipeline or transporting large components to a workshop.
Product Advantages & Feature
1. External Clamping Design
The external clamping system provides stable mechanical support during flange machining and is suitable for large-diameter flange applications.
2. Pneumatic Drive
The compressed-air drive provides fast start and stop response and eliminates the need for an electric drive at the machine. It is particularly useful in applications where electrical sparks should be minimized.
3. Portable On-Site Machining
The portable design allows operators to repair flange sealing surfaces directly at the job site, reducing the need to remove and transport large flanges.
4. High Rigidity
The external clamping structure provides strong support for machining operations and helps maintain stable cutting performance.
5. Adjustable Feed Control
The feed handwheel with a scale display allows operators to control tool movement more accurately during flange face machining.
6. Wide Machining Range
Wellnit offers external clamp pneumatic flange processing machines covering different flange sizes. Current models listed by Wellnit include machining ranges from approximately 0–300 mm to 0–3000 mm O.D., depending on the model
Types of Pneumatic Flange Facer
| Type | Working Range | Tool travel | Application |
|---|---|---|---|
| WFDP-300 | 0–300 mm | 50 | Small flange repair and maintenance |
| WFDP-610 | 0–610 mm | 95 | Pipeline and industrial flange machining |
| WFDP-1000 | 0–1000 mm | 95 | Medium-size flange repair |
| WFDP-1500 | 0–1500 mm | 95 | Large flange machining |
| WFDP-2000 | 0–2000 mm | 95 | Large-diameter flange maintenance |
| WFDP-2500 | 0–2500 mm | 95 | Large industrial flange machining |
| WFDP-3000 | 0–3000 mm | 95 | Extra-large flange machining |
Product structure
Choose the plan that suits you best.
Tool Post Feed Handwheel
The core function of the tool holder feed handwheel is to allow the operator to directly and accurately control the position of the cutting tool radially (toward or away from the center).

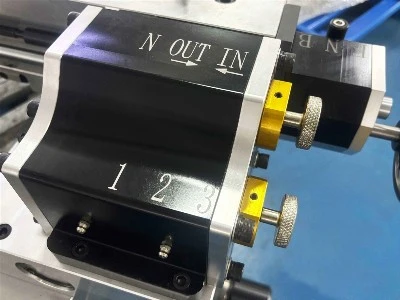

Tool holder symbol explanation and feed direction settings
N means neutral, rotates without load "IN" means forward gear, indicating feed from inside to outside. "OUT" means reverse gear, indicating feed from outside to inside. ["3" "2" "1"] Adjust feed rate.
Horizontal feed handwheel
Switch the gear lever, and gently turn the [horizontal feed handwheel] when engaging the gear. Make sure the gear is fully engaged.
No directional restrictions
It can be installed horizontally, vertically, or upside down, with no restrictions on working position, making it suitable for any work environment.
Materials
Pneumatic Flange Facer can be used for machining common industrial flange materials, depending on the selected cutting tools and machining conditions.
Common materials include:
Carbon steel
Stainless steel
Alloy steel
Other machinable metal flange materials
Applications
Oil & Gas Industry
Used for repairing and resurfacing pipeline and equipment flanges during installation, maintenance and shutdown operations. The pneumatic drive is useful for certain hazardous industrial environments where electrical sparks should be minimized.
Chemical Industry
Suitable for flange face repair and sealing surface machining on chemical process pipelines and equipment.
Power Industry
Used for maintenance of flange connections on power generation equipment, pipelines and related industrial systems.
Shipbuilding & Marine
The portable design makes the machine suitable for flange repair and maintenance in shipyards, marine equipment and other restricted working areas.
Machinery Maintenance
Used to restore worn, scratched or uneven flange sealing surfaces without sending large components back to a machining workshop.
