Products Description

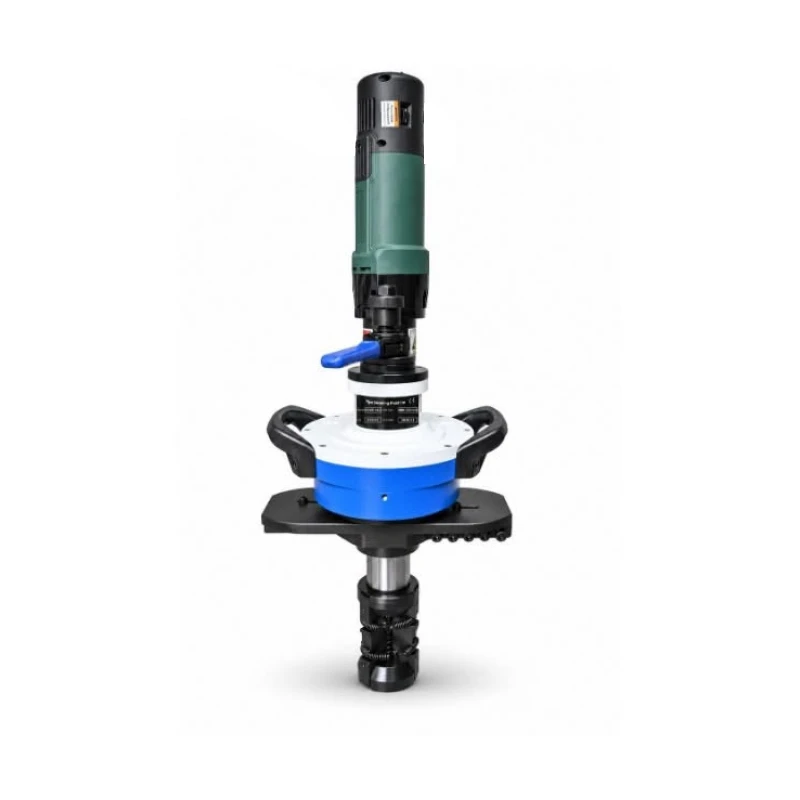

Sheet metal beveling machine the ends of previously cut pipes to create the required bevel angle and edge profile. Instead of cutting through the pipe, the machine removes material from the pipe end through mechanical cutting. This process helps prepare pipe edges according to the requirements of subsequent welding operations. With its internal expansion design, the ISE-252 sheet metal beveling machine is intended for pipe end machining applications where internal clamping is suitable.
Products Feature

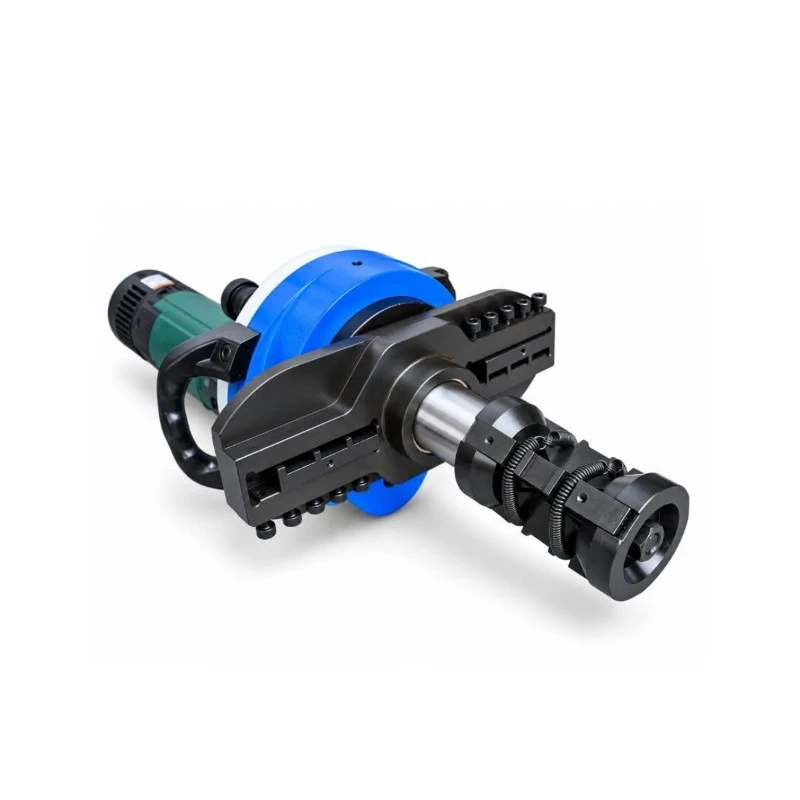

This series of I.D. mounted pipeline beveling machines, including advanced metal beveling machine technology, is characterized by light weight and easy portability. Installation is quick and effortless-the expansion mechanism inserted into the pipe's inner diameter automatically locates the center.
- Cold beveling, does not affect the pipe material
- Easy to install and operate
- Self-centering
- High precision, direction unlimited
- Minimal effort required, ratchet handle makes tool feeding and retracting easy
- Lightweight, compact structure, easy to carry
- Electric or pneumatic drive options availabl
Products Description
| Model | ISE-252-1 |
| Drive Type | Electric |
| Power Supply | 220-240V 1PH 50/60Hz |
| Power | 2000W |
| Working Range | 80-240mm |
| Wall Thickness | Less than 20mm |
| Rotational Speed | 16 r/min |
| Net Weight | 35KG |
| Gross Weight | 50KG |
| Packaging Size | 76*38*36cm |
Machine Packing List
| Name | unit | Quantity |
| Machine | Tai | 1 |
| Expansion block | set | 3 |
| 0 tool | individual | 1 |
| 30 tool | individual | 1 |
| 37.5 tool | individual | 1 |
| Internal hex wrench | individual | 1 |
| External hex wrench | individual | 1 |
| User manual | individual | 1 |
Product Details
Beveling Machine Installation and Operating Procedures
1. Measure the inner diameter of the pipe and choose the appropriate expanding block.
2. Insert the machine's expanding mechanism into the pipe opening, tighten the expanding nut firmly, and make sure the machine is securely installed. Note that during expansion, the expanding mechanism inside the pipe should leave about 20mm from the pipe end, and it shouldn't be inserted too deep.
3. After installing the cutter, the cutter edge should be 2-3mm away from the pipe end to prevent the machine from starting and causing the cutter to hit.
4. Plug in the power, jog the motor switch, and check if the cutter blade touches the pipe.
5. Slowly rotate the axial feed handwheel/handle so that the cutter blade contacts the highest point of the pipe and starts cutting.
6. After finishing the bevel processing, reverse the feed mechanism to retract the tool disc and move the cutter away from the bevel surface.

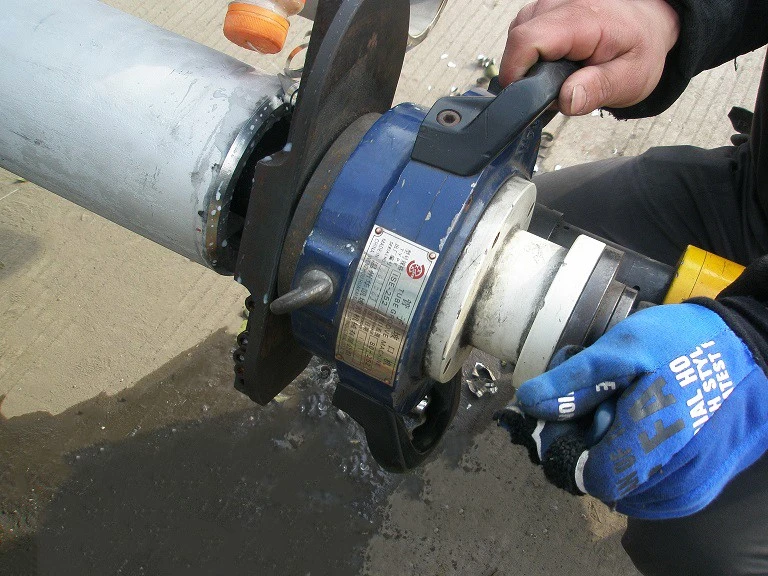

On-site construction case
Suitable for repair work before pipe welding.
Manufacturing and Supply Information
Wellnit specializes in manufacturing beveling machines for industrial pipe and plate preparation. The ISE-252 sheet metal beveling machine is one of its internal expansion pipe beveling machine models.
The minimum order quantity is one unit. In-stock models have a stated dispatch time of 1–3 days, while customized models have a stated lead time of within one month. Actual stock availability and delivery schedules should be confirmed before order placement.
Certifications
Create a comprehensive solution for efficient human theft manag
Export licence
Export licence
Export licence
Patent Certificate
Patent Certificate
Patent Certificate
FAQ
Q: What is an internal expansion pipe beveling machine?
A: An internal expansion pipe beveling machine is mounted inside the pipe bore. Its expansion mechanism secures and centers the machine before machining the pipe end.
Q: Does the machine cut through the entire pipe?
A: Its described function is pipe end bevel machining, rather than the initial operation of cutting through the pipe..
Q: Which bevel angles does the ISE-252 support?
A:Common industry bevel angles include 30°, 37.5°, and 45°.Angles can be customized as needed.
Q: What is the minimum order quantity?
A: The minimum order quantity is one unit.
Q: How long is your warranty?
A: All machines from Wellnit come with a 12-month warranty, and the motors are covered for 3 months, starting from the delivery date. We offer 24-hour tech support, and you can reach us on WhatsApp (+86 18058880099).
