Products Description
Dual Pin Drill is built for speed on big casing jobs, reaching up to 394 rpm for speedy, clean cuts on diameters ranging 6 to 36 inches. With two hydraulic motor options, you can choose high-speed drilling or 390 ft-lbs. of torque for cuts that need more muscle. And it's thru-spindle coolant system clears debris as you go, so you'll never sacrifice tool life for pace.
Key Features
Dual pin alignment provides stability for precise drilling up to 36 inches in diameter
High-strength stainless steel spindle accommodates standard 1-1/4 – 7 threaded hole saws
Quick setups for single-side from 6 to 18 inches and dual-side drilling from 16 to 36 inches
Thru-spindle design keeps coolant flowing, which minimizes beat build-up and extends tool life
Products Description
For tough cuts on tight timelines

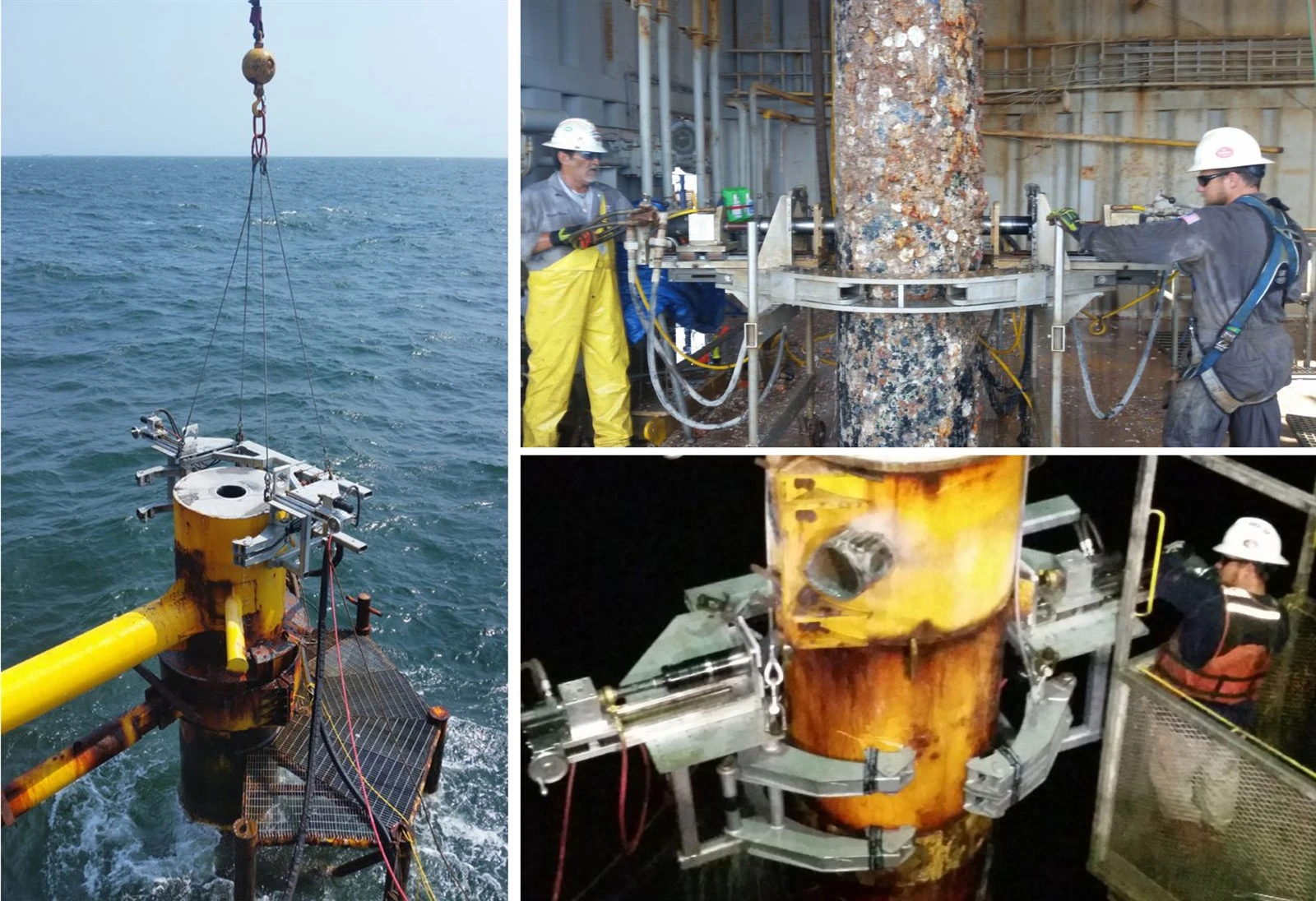

Dual Pin Drill let you cut from both sides simultaneously, anchored by a dual-pin setup that locks everything in place for offshore rigging and structural steel. With the power to tackle subsea infrastructure and heavy equipment, you'll avoid repositioning hassles to get the job done quickly.
Dual Pin Drill Specifications
| Single Pin Drill Config. | Dual Pin Drill Config. | ||
| Minimum Pipe Diameter |
6″ (152mm) |
16″ (406mm) |
|
| Maximum Pipe Diameter |
18″ (457mm) |
36″ (914mm) |
|
| Stroke |
21″ (533mm) |
21″ (533mm) |
|
| Feed Rate per Handwheel Revolution |
0.10″ (2.5mm) |
0.10″ (2.5mm) |
|
| Length |
51″-65″ (1295-1651mm) |
93″-115″ (2362-2921mm) |
|
| Width |
39″-50″ (990-1270mm) |
39″-50″ (990-1270mm) |
|
| Height |
61″ (1549mm) |
|
FAQ
Q: In what situations can a portable industrial drill be used?
A: Project Location: Topside / On-site (refineries, power plants, civil infrastructure) or Offshore / Subsea (oil & gas decommissioning).
Q: What's the drilling range of a portable industrial drill?
A: Drilling range：Ø 6″(152mm)-Ø 36″(914mm)
Q: What types of drive systems are there?
A: Pneumatic and hydraulic drive types
Q: How does a portable industrial drill make holes in metal pipes?
A: It fixes itself firmly on the metal surface using strong magnetic force, then drives the drill bit to rotate and finish drilling.
Q: How do I request a quote for a portable industrial drill?
A: Contact us via email at wellnit@foxmail.com, or reach us on WhatsApp at +86 180 5888 0099-feel free to get in touch anytime. Please specify the type of product you need, quantity per item, strength grade (if any), surface treatment requirements, delivery location, and required delivery date. Our engineering and sales team will provide technical confirmation and a quote within 24 hours.
Q: What's the minimum order quantity and delivery time?
A: The minimum order is one standard machine. Whether it's a single sample order or a bulk project order, we can accept and handle it, all under the same quality management system. For in-stock products, we ship within 3-5 working days after payment. For large orders, the standard delivery time starts from order confirmation and receipt of the deposit, usually taking about 30 days, and a detailed production and delivery schedule will be provided at the time of order confirmation.
Q: What kinds of payment methods and shipping terms do you accept?
A: For standard orders, 100% by T/T; for large orders with a delivery schedule (deposit and balance): 30% deposit and 70% balance. The balance should be paid before shipment.
