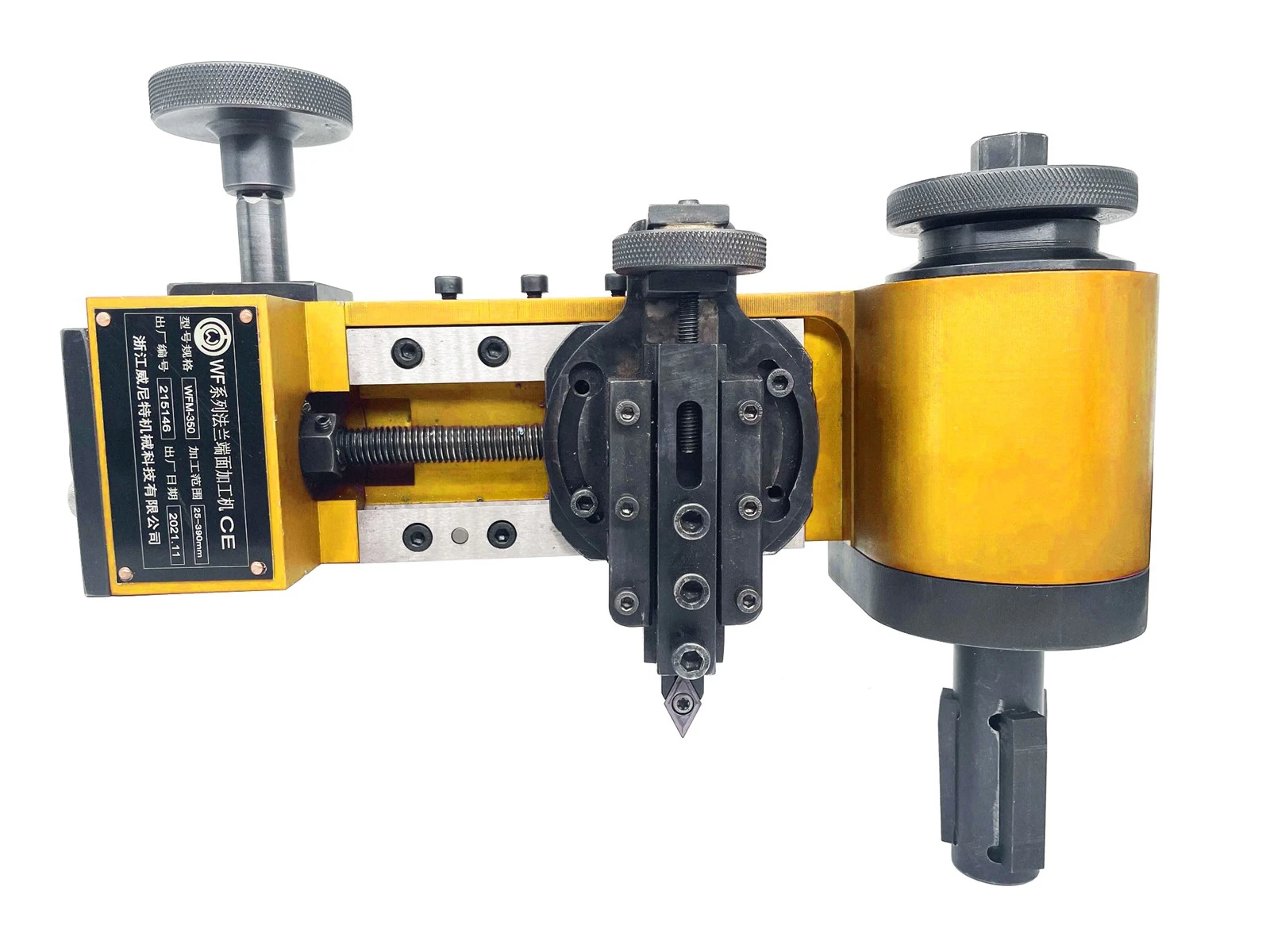

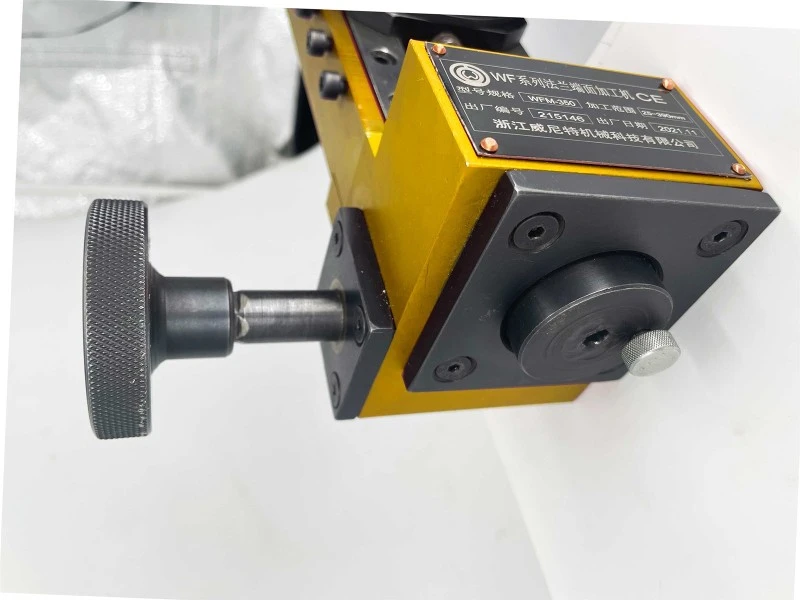

Product introduction:
WFM-350 manual flange facing machine is applicable tomanually repair the flange surface by installing the equipmenton the inner wall of the flange pipe (the machine adopts themethod of internal clamping)when there is no power source(power supply and air source)on site. The manual flange facing machine has extremely light weight, which is convenient for on-site installation, operation and disassembly, and greatly reducesthe on-site maintenance cost.
characteristic
without power such as electricity and gas, it is convenient formanual operation and small flange repair on site.compact structure, high-strength materials are selected, andthe whole machine is light and easy to operate.adjustable tool holder, internal clamping installation, suitablefor machining flange diameterrange of 25-350mmautomatic centering,supported on the inner wall of flangehole to ensure concentricity
the equipment can obtain appropriate feed rate by replacingthe lead screw, which can meet the processing of mirror andwater grain line.
Specification:
|
Processing diameter range |
27.2-355.6mm |
Knife holder travel |
40mm |
|
|
Clamping diameter range |
27.2-270mm |
power |
manual operation |
|
|
Equipment rotation space |
495-582mm |
Feed rate |
Mirror processing |
0.125mm/rev |
|
ASME B16.5 |
0.5mm/rev |
|||
Our Product Specifications
Operation safety norms:
Wear protective equipment, including goggles, protective gloves and non-slip work shoes before operation to prevent injury from splashes and sharp objects. Ensure that the working area is well ventilated and the floor is dry, and remove all flammable objects.
Equipment inspection process:
Manual flange facing machine Comprehensively check the integrity of equipment parts (clamps, fasteners, operating handle) before use. Make sure the cutting tool is sharp and free of defects. Adjustment of feed parameters must be in accordance with the technical specifications of the equipment.
Packaging rendering

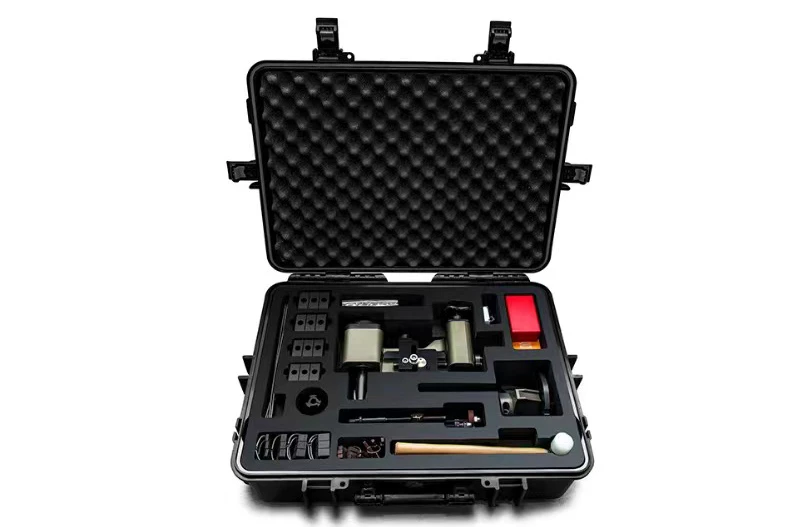

The outer packaging adopts a suitcase design, exuding a premium, sophisticated and upmarket feel. It is well-suited for transport, resisting jostling and minimising the risk of damage.
Installation and operation points:

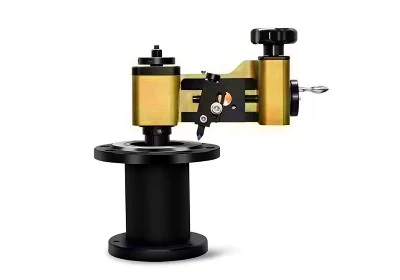

Securely fix the machine to the inside of the flange by means of the built-in clamping device. Align the machine position carefully to prevent vibration or displacement during operation. Ensure that the tool centreline is perfectly concentric with the flange bore.
Machining Precautions:
Set the machining parameters according to the flange material (steel/aluminium, etc.) and wall thickness. Maintain a uniform feed rate during operation and avoid excessive pressure. Observe the sound of the machine and check the quality of the machined surfaces. Abnormal sound may indicate tool wear or positioning deviation.
Test run demonstration
Maintenance requirements:
Clean the metal debris on the top of the equipment after the operation is completed to prevent iron chips from entering the machine and causing damage, and use a dry soft cloth to wipe the surface of the equipment to prevent rust. Lubricate and maintain all moving parts. Avoid contact with moisture and corrosive substances.
Safety Code:
Regularly review the safety operating procedures and emergency procedures. It is strictly forbidden to simplify the operation procedure or skip critical checking steps (e.g. positioning calibration session). All operations must be carried out in strict accordance with standard procedures.
Brief Introduction
Zhejiang Wellnit Machinery Manufacturing Co., td., located in Shuige lindustrial Zone, Liandu District, LishuiCity, specializes in the production of electric, pneumatic, hydraulic, CNc, and explosion-proof groove cuttingmachinery. After years of development, the company has won the domestic and interational markets withexcellent quality and perfect service, and is highly praised and trusted by users.
More about Wellnit
Certifications
Create a comprehensive solution for efficient human theft manag
Certificate name
Certificate name
Certificate name
Patent Certificate
Patent Certificate
Approved Supplier
FAQ
Q: 01.What is a Flange Facer Machine used for?
A: A flange facing machine is a type of machine tool specifically used for precision machining and repairing the sealing surfaces of flanges. It can perform high-precision cutting on flange faces, flow lines, sealing grooves, and more, ensuring that the flange connections meet industrial sealing standards.
Q: 02.What types of flanges is a flange face machine suitable for?
A: Raised Face: The most common type of flange sealing surface. Flat Face: Used for low-pressure conditions, and the equipment allows for flat surface maintenance. Male-Female Face: Seals by matching concave (F) and convex (M) surfaces. Ring Joint Face: Used for high-pressure and high-temperature conditions, with the equipment specially designed to machine RTJ sealing grooves. Heat Exchanger Tube Sheet Flange: Used to secure heat exchanger tube bundles. Large Pressure Vessel Flanges: Such as manhole and head flanges for hydrogenation reactors, towers, and other vessels..
Q: 03.How do you choose between an internal expansion type and an external clamping type flange facing machine?
A: The key deciding factors are the flange size (diameter) and the on-site conditions. Simply put, for small diameters and inner holes, an internal expansion type is usually chosen; for large diameters, inconvenient inner holes, or when quick switching is needed, the external clamping type is chosen.
Q: 04.What's the minimum order quantity for a flange end face machining machine?
A: The minimum order is one standard machine. Whether it's a single sample order or a bulk project purchase order, we can accept and handle it, and all follow the same quality management system.
Q: 05.How long does delivery take?
A: For in-stock products, we ship within 3-5 working days after payment. For large orders, the standard delivery time starts from the order confirmation after receiving the deposit and usually takes about 30 days. A detailed production and delivery schedule will be provided at the time of order confirmation.
Q: 06.How do I get a quote?
A: Please send your inquiry email to wellnit@foxmail.com, or contact us via WhatsApp at +8618058880099 (we'll reply within 24 hours). Please specify the product type you need, the approximate quantity, applicable standards or drawing references, delivery location, and required delivery date. Our team will get back to you within 24 hours with technical confirmation and a quote.
